11 ESD Brushes
Zero Charge™ ESD Brushes

ESD Brushes are needed in electronics manufacturing:

  • They help to clean the PCB’s (remove unwanted dirt, flux residues etc.), and discharge static electricity through properly ESD grounded operator.
  • Conductive brushes minimize static charge generation during cleaning.
  • Black static dissipative polypropylene handles are able to pass the charges to the ground.
  • Conductive fibers resistanc: 103 - 104 Ω
  • Dissipative handle resistance: 105 - 108 Ω
  • Harder brushes are used mainly for electronics in manufacturing and service of the circuit boards.
  • Soft brushes are used for cleaning optics, micro-circuits etc.
Picture Part Number Rows and Bristles Description Total length (mm) Bristle Length (mm) Bristle Width (mm) Bristle Height (mm) Weight (g)
ABB-501 1 row ESD pen Brush 135 20 fi 3.4   8
ABB-502 1 row ESD pen Brush 140 20 fi 3.4   8
ABB-503 1 row 3 bristles bundles ESD Safe Conductive, hard brush. 155 18 3.6 30 17
ABB-505 1 row 5 bristles bundles ESD Safe Conductive, hard brush. 165 33 4.5 32 20
ABB-507 1 row 7 bristles bundles ESD Safe Conductive, semi-hard  brush. 140 33 2.7 25 13
ABB-507R Round 7 bristles bundles ESD round Brush   circle fi=9 17 10
ABB-510 1 packet, flat ESD Brusch, Round, Hard, Good universal use.Cleanning PCB's etc. Perfect for light duty. 162 17 5 30 22

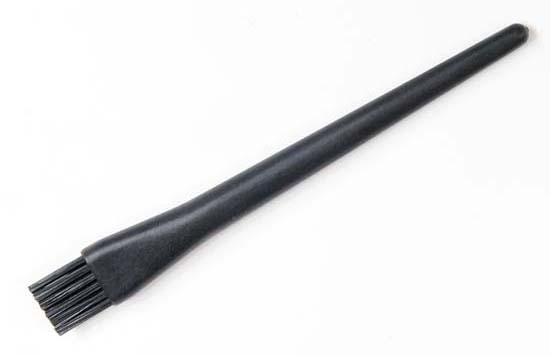

ABB-511 2 rows 11 bristles bundles Semi-hard ESD Brush, Light duty 150 18 4.5 20 8
ABB-520 3 rows 20 bristles bundles ESD Conductive brush. Surface resistance: 10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body. 175 35 10 16 19
ABB-522 2 rows 22 bristles bundles ESD Conductive brush. Surface resistance: 10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body. 170 60 10 18 23
ABB-534 3 rows 34 bristles bundles ESD Conductive brush. Surface resistance:10e3--10e6 Ω. Removes dirt on PCB's or other ESD sensitive components, and discharges the static electricity through conductive path via human body. 225 94 16 22 52
ABB-550 Continuous packet of bristles ESD Safe Conductive, Soft  brush. 2" wide. 220 50 15 50 100
ABB-575 Continuous packet of bristles ESD Safe Conductive, Soft  brush. 3" wide. 210 75 15 50 120
ABB-317 1 row 17 bristles bundles ESD Safe, Conductive Soft brush. Medium size. Good for cleaning benches and other larger surfaces. Will not generate static during cleanning process. 255 125 5 33 80
ABB-333 1 row 33 bristles bundles ESD Safe, Large, Conductive Soft brush. Good for cleaning bench es and other larger surfaced. Will not generate the charges during cleanning process. 390 220 5 48 143
ABB-350 5 rows 50 bristles bundles ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces. 95 68 32 20 62
ABB-398 7 rows 98 bristles bundles ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces. 120 95 46 20 107
ABB-3160 8 rows 160 bristles bundles ESD Safe, Basic, Conductive Hard brush. Good for cleaning flux residue and small particles on PCB's and other surfaces. 180 155 57 20 203

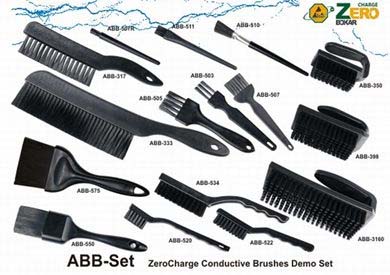

ABB-Demo Set 15 brushes ESD Safe Conductive brushes. Good for cleaning flux residue and small particles on PCB's and other surfaces.
Copyright © 2000-2025 xkar.com
Manufacturer is committed to continuing development of new products and improvements to existing products.
Specifications are subject to change without notice.
