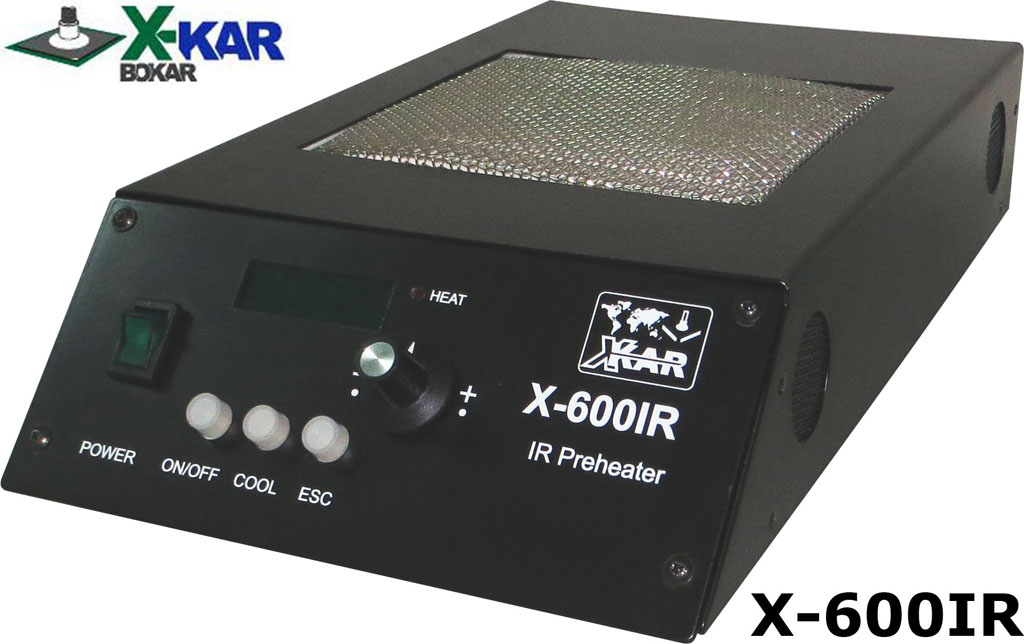

X-600IR Medium Size Digital, soft IR PCB pre-heater

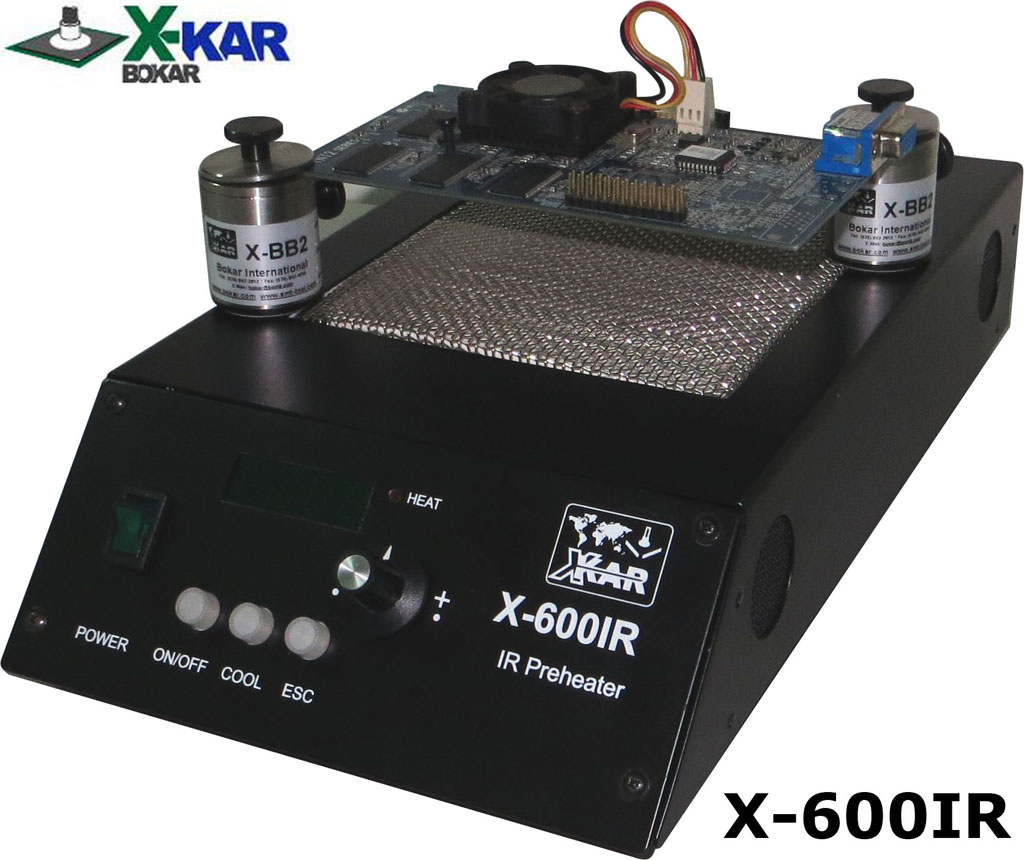

The X-600IR PCB pre-heater has user adjustable off-set to pre-set reasonably accurate preheat temperature for reworked PCB. It was designed to reduce the workspace required for SMT Rework and Repair. This design emphasizes on the appropriate process control for Rework and Repair. Pre-heater Unit is microprocessor controlled to maintain accuracy and to extend heating element life.


<
X-600IR Medium Size Digital , soft IR PCB Pre-heater

System Features:

Microprocessor controlled.
High power, medium area pre-heat surface.
ESD safe.
Close loop temperature PID control maintaining set temperatures with high accuracy.
LED display: 4x7 segments.

System includes:

X-600IR Unit System
Manual and Warranty Card

Available models:

X-600IR/230 - Small Digital Convection PCB Pre-heater, Supply Voltage 207-242V.
X-600IR/115 - Small Digital Convection PCB Pre-heater, Supply Voltage 104-127V.

Technical Specifications:

MODEL	X-600IR/115	X-600IR/230
Input Voltages	110-120V AC	220-240V AC
Power Consumption	Max. 660 W	Max. 620 W
System dimensions (W x H x D)	7.3" x 12.6" x 2.8" (186 x 320 x 70 mm)
Packaged weight	9.3 lbs. (4,2 kg)
Pre-heater Section
Max. Power	650W	600 W
Preheat Temperature measured on a PCB	140-302 °F (60 -150 °C)
Heating area dimensions	5.2" x 5.2" (132 x 132 mm)
Preheat area	More than 5" square
