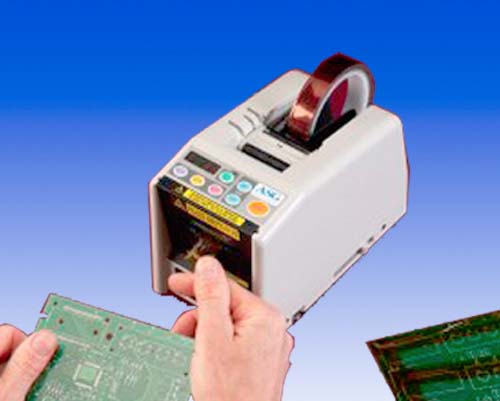

Model Number A-TM7
This unit is compact and powerful. It will fit nicely on your work
stations or cell system. It is constructed around a small foot print to
save valuable work space.
The unit can be used to cut tape, tube, film, aluminum foil and more.
The A-TM7 easily cuts through tough tapes such as Filament, Strong, Kapton,
Acetate, Glass Cloth, Double sided, Normex and more.
- Unit has dual photo sensors for use with 2 rolls at a time.
- Cut lengths: 5mm to 999mm (3/16" to 39") 1mm increments.
- Tape Width: 6mm to 55mm (1" to 2")
- Adjustable to limit tape curling.
- No special bobbin is needed to hold the tape.
- Built in tweezers for small pieces.
The unit has 4 dispensing modes that will help to improve productivity.
- Automatic feeds and cuts tape when the last piece is taken.
- Feeds a single piece of tape each time the button is depressed.
- Can be programmed to cut a preset number of pieces.
- Can be programmed to continually feed and cut to a predetermined
length and quantity of non-adhesive material.
|
 |

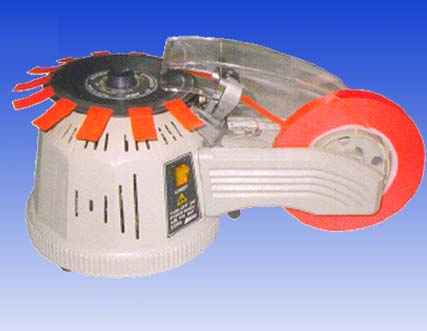

Model Number A-TM2
The A-TM2 tape dispenser is designed to help reduce waste and operator
fatigue. With the touch of a single button the A-TM2 will dispense tape
half way around the turntable making it convenient for an operator or a
group of several when placed between them.
The unit provides your operators with tape that is cut to a constant
length while maintaining a straight cut on each end. The dispenser will
accept virtually any type of tape including Vinyl-, masking-, cellophane-,
polyethylene-, paper-, acetate cloth-, cotton cloth-, Mylar-, glass
cloth-, soft forming-, aluminum foil-, double sided-, Teflon-, Nomex-,
glass filament-, and many others.
| Cut length Range: |
13mm to 59mm (.51" - 2.32") |
| Maximum Tape O.D.: |
30mm (5.11 ") |
| Core sizes: |
26mm(1.02"), 31mm (1.22"), 32mm (1.25"), 33mm
(1.29"), 77mm (3.03") |
| Overall Dimensions: |
130mm x 165mm x 170mm 5.11" x 6.49"x 6.69" |
| Weight |
2.8kg (6.17lbs) |
|
