XF Series - Bench Top Smoke Absorbers

The most cost effective fume handling solution

Aerodynamic design of fume-collecting hood enhances collection of harmful soldering fumes away from the operator through carbon-impregnated filter. Use of this type of fume extraction is recommended on every bench where central fume extraction is not available.

Features

ESD safe and equipped with a powerful fan that provides highly efficient smoke absorption at low noise.
Filtration is accomplished with an activated, carbon-impregnated urethane foam filter which can be easily replaced.
Highly recommended for factories without exhaust equipment and laboratories where desoldering is performed.
High quality, high capability, but inexpensive.
Aerodynamic hood design effectively draws irritating soldering fumes away from the work area. Carbon-impregnated filters trap a limited portion of the flux fumes.
Compact size, low profile and adjustable stand allow convenient placement 6" to 8" (152 mm to 203 mm) from work area.
Articulating arm allows optimized positioning and saves bench space. ESD safe and comes with powerful fan that provides highly efficient smoke absorption at low noise.

XF-1 System Includes:

ESD safe fume absorber
3 filters

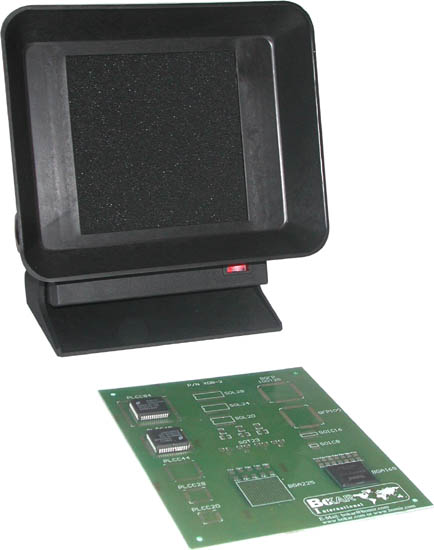

Model XF-1

XF-2 System Includes:

ESD safe fume absorber
Articulating arm
Mounting bracket
3 filters

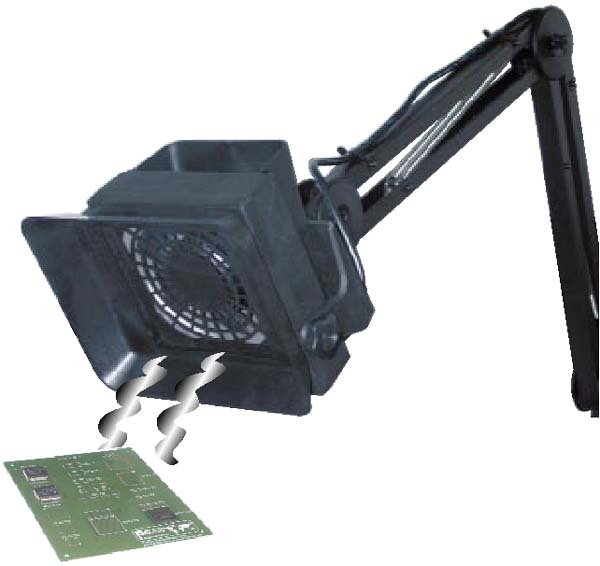

Model XF-2

Assembly Instructions

Fix the support
Slide the activated carbon filter in position.
Plug power cord into proper power outlet (110-120 or 220-240V AC).
Turn the switch on. (Right side bottom)
Set the absorber to face the fume source for best operation.

Unit Specifications

Model No.	XF-1	XF-2
Input Voltage	110-120V AC / 220-240V AC
Max Air Flow	105 to 126 CFM
Activated Carbon Weight	12 g
Unit Weight	2.4 lbs (1,1 kg)	4 lbs (1.8 kg)
Fume Absorber Dimensions (LxWxD)	7.9”x8.2”x5.1” (200mm×208mm×130mm)
Arm Length	N/A	24" (607 mm)

Replacement parts:

XF-1F - Replacement Filter Set, ( 3 pieces per set). Size: 4.8"x4.8" (123x123mm)

Recommended Additional Equipment:

XF-ARM - Arm with mounting hardware

How to order

P/N	Description
XF-1-115	ESD-Safe Bench-Top Fume Absorber, 115V AC
XF-1-230	ESD-Safe Bench-Top Fume Absorber, 230V AC
XF-2-115	ESD Safe Bench-Top Fume Absorber, 115V AC with Articulating Arm
XF-2-230	ESD Safe Bench-Top Fume Absorber, 230V AC with Articulating Arm
XF-ARM	Arm with mounting hardware
XF-1F	Replacement Filter Set, (3 pieces per set). Size: 4.8"x4.8" (123x123mm)
