X-PRINT305 Stencil Printer

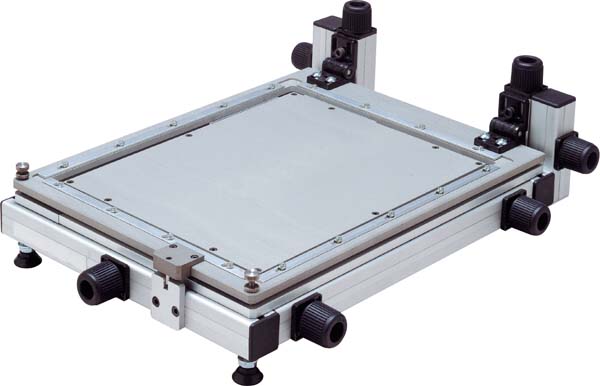

This manual stencil printer is the low-cost solution for manual solder-paste deposition during assembly process. Solid and sturdy construction assures stability during paste printing. Alignment knobs are large and easy to operate.

Features

HIGH QUALITY AND PRECISION PRINTING: The user can align the position of pads on a PCB and corresponding pattern on the stencil easily and with high accuracy.
SOLID ALUMINUM BODY: Solid aluminum body assures long-term use and protects against frame deformation caused by mechanical shock.
QUICK AND EASY STENCIL CHANGE: The stencil can be changed quickly when replacement is needed for paste application on another PCB.
MANAGEMENT: Spare frames are easy to store and allow quick set-up of production run.

Note: Stencil itself is frameless (stencil is not supplied with the printer). To make a frameless stencil please contact local stencil manufacturer. The manufacturer will need the stencil's mounting holes dimensions and overall size (see X-PRINT manual) and the gerber file of your board(s) to make your stencil.

(Certificate for free stencil included)

Click to enlarge image
High quality and precision printing

Technical Specifications

Base adjustment (x, y axis)	5 mm ( .2”)
Base adjustment (z axis)	5 mm ( .2”)
Theta base adjustment	2°
Adjustments Accuracy	0,03 mm (.001”)
Dimensions	23” x 19” x 7.8” (584x483x200 mm)
Max working area	305x381 mm (12” x 15”)
Weight	28 kg (63 lbs.)
Shipping package weight	35 kg (77 lbs.)
Stencil itself is frameless (stencil is not supplied with the printer)

Optional Accessories

XPR305FR Spare frame with stencil mounting hardware
X-RAK305 Replacement squeegee
XS-StencilCleaner Stencil cleaner
