XUT-1 Universal Tripod |
| XUT-1 |

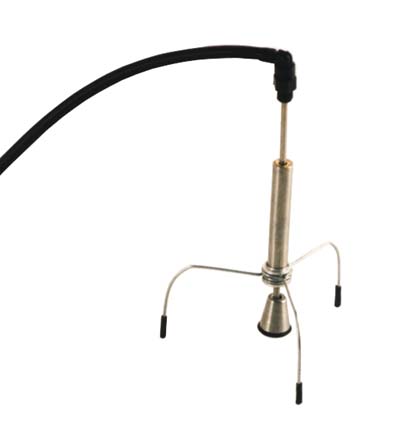

XUT-1 is a convenient accessory for removal of SMD components. It needs a vacuum source (such as XVP-200) to operate. It can be connected to many other X-KAR vacuum sources or systems (SMT-ServiCE, XVB-1, XVP-200, XVP-100)
OPERATION:
Connect XUT-1 to a vacuum source
Place XUT-1 on a PCB above a component to be removed
Turn-on vacuum source
Press on top of XUT-1 unit until vacuum cup attaches to the component to be removed
Desolder the component using hot air tool (XmR-Micro, XHP-300, XHP-N2 or any other tool from FOCUS Family)
Upon reflow of solder the XUT-1 will lift the component
